Specifications
1.Real factory ,more than 10 years of specialized production experience
2..Installation support including oversea service, help customers to install and adjust the production well
3.Good after-sales service with 1 year warranty and in time supply of spare parts
Application
The QTD125 luffing jib tower crane is widely used in kinds of large construction projects. Such as high-level hotel, the renewal of old building, high-rise industrial building,large span industrial workshop,the tall chimneys and silo using slipform operations,
tower type building etc.
And it can be used in dock, port, open depot and so on for the need of special lifting.

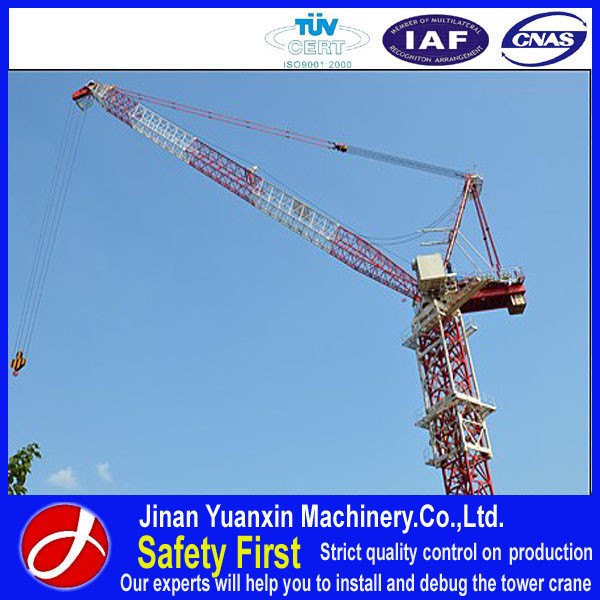

Main Technical Parameters of QTD125 Yuanxin Tower Crane
| Rated Lifting Moment | 1250KN.M |
| Rated Loading Capacity | 10t |
| Max. Lifting Load | 10t |
| Max. Lifting Height | 201.5m |
| Free standing height | 37.5m |
| Span | 50m |
| Working range | 3 to 50m |
| Slewing speed | 0-0.6r/min |
| Jacking speed | 0.4 m/min |
| Total Power | 83.1Kw (without jacking mechanism) |
| Hoisting speed | (a=2) 2.5/80;5/40(t m/min); (a=4) 5/40;10/20(t m/min ) |
| Main Material | ∠200×20mm ,∠125×12mm |
| Mast section | 2×2×2.8m,1.835×1.835×2.5m |
Advantages of QTD125 Yuanxin tower crane
1.Facory direct offer, low price
2.Low operating cost but high efficiency;
3.Simplicity in operation;
4.High degree of safety;
5.Long durability;
6. Low energy consumption.
7.Widely used
The parts of Yuanxin tower crane
Construction site of Yuanxin tower crane
Delivering of Yuan xin Tower Crane:
1.Short delivery time, normally within 30workdays;
2.All products will be well fixed;
3.More easy wear spare parts will be attached for free;
4.The transportation will be safe and stable;
The Services of Yuanxin Factory
1.All of our machines will be with 1 year warranty after receipt the destination port;
2.More easy ware spare parts will be attached for free;
3.Oversea service are available from us, our experts will help you to install and adjust the tower crane
in your area;
4.Technology support for maintenance and maintenance spare parts will be supplied in time;
More Products:
Jinan Yuanxin Factory produce kinds of tower crane including:
&Topkit tower crane
&Topless tower crane
&Luffing tower crane
Tower Crane production workshop:
Production Technology&Equipment:
&Robot automatic welding system;
&CNC plasma cutting machine;
&Precision machine tools;
&Double-faced milling machines process the end surfaces;
&Professional Sales Service, to contact customers and answer the questions honestly and in time;
&Production Service: Report the production progress to customers, ensure the customers know well about the schedule and prepare well for use or sale;
&Long time cooperated transporting cooperator, ensure the delivery be safe, short time and low cost;
&Experts oversea service to help customers install the machines into good condition;
&1 year warranty, but take responsibility for machine whole life, for maintenance support and spare parts supply;
&Other aspect according to customers request;
