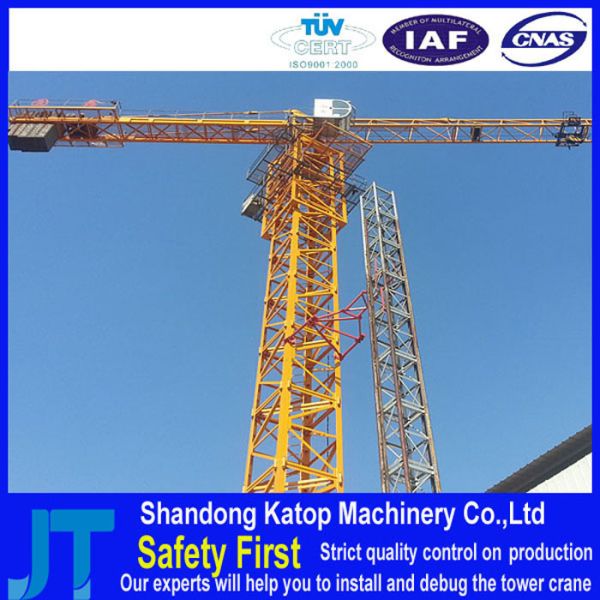

10T QTZ160-6515Double-gyration large construction tower crane

Product Categories
Shandong Katop Machinery Co.,Ltd.
Contact Now

10T QTZ160-6515Double-gyration large construction tower crane

  • 1
  • 2

Place of Origin : Shandong, China

Brand Name : Katop

Certification : CE, ISO9001

Model Number : QTZ160-6515Double-gyration

MOQ : 1 UNIT

Packaging Details : Nude packed, well fixed, uninstalled

Delivery Time : About 30-50workdays after receipt the deposit;

Payment Terms : 30%TT in deposit, the balance 70%TT before shipment or by LC at sight

Supply Ability : 60units/month

Contact Now

Specifications
1. Lifting height 50m, loading capacity 10t, long jib length 65m

2.Factory supply, low price

3.Installation support

4.Good after-sales service

Main Technical Parameters of QTZ160(6515Double-gyration) Tower Crane

Name

Unit

Value

Rated load moment

kN.m

1200

Max.rated load capacity

t

10

Working radius

m

3~65

Rated load capacity at max.radius

t

1.5

Hoisting height

Freestanding

m

50

Attaching

m

180

Hoisting speed

a=2

m/min

80/40

a=4

40/20

Counterweight

Freestanding

t

54.515

Attaching

112.37

Motor total power

kw

60.5

10T QTZ160-6515Double-gyration large construction tower craneA.The trolleying mechanism10T QTZ160-6515Double-gyration large construction tower crane

The trolleying mechanism specification

Trolleying mechanism

Derricking speed

m/min

39/27

Brake motor

/

YZTDE180M-4/8/24

power

kW

5/3.7/1.1

the trolleying speed:

m/min

58.6/29.3/8.79

B.The slewing mechanism10T QTZ160-6515Double-gyration large construction tower crane

The slewing mechanism specification

Slewing mechanism

Slewing speed

r/min

0.61

Motor type

/

YZR160M1-6

Power

kW

5.5 x 2

Rotating speed

r/min

908

C.The lifting mechanism10T QTZ160-6515Double-gyration large construction tower crane

The lifting mechanism specification

Lifting mechanism

Lifting speed

m/min

80/40 m/min (2 fall) 40/20m/min (4 fall)

Motor type

/

YZRDW250M-4/8

power

kW

37/37

D.The jacking mechanism10T QTZ160-6515Double-gyration large construction tower crane

The jacking mechanism specification

Jacking mechanism

Jacking speed

m/min

0.4

Working Pressure

MPa

25

Motor type

/

Y132M2-4

power

kW

7.5

10T QTZ160-6515Double-gyration large construction tower crane


Quality 10T QTZ160-6515Double-gyration large construction tower crane for sale

10T QTZ160-6515Double-gyration large construction tower crane Images
